VARHD+

Pre-painted Super Polyester

VARHD+ is the new and innovative product that revolutionizes the market of precoated steel.

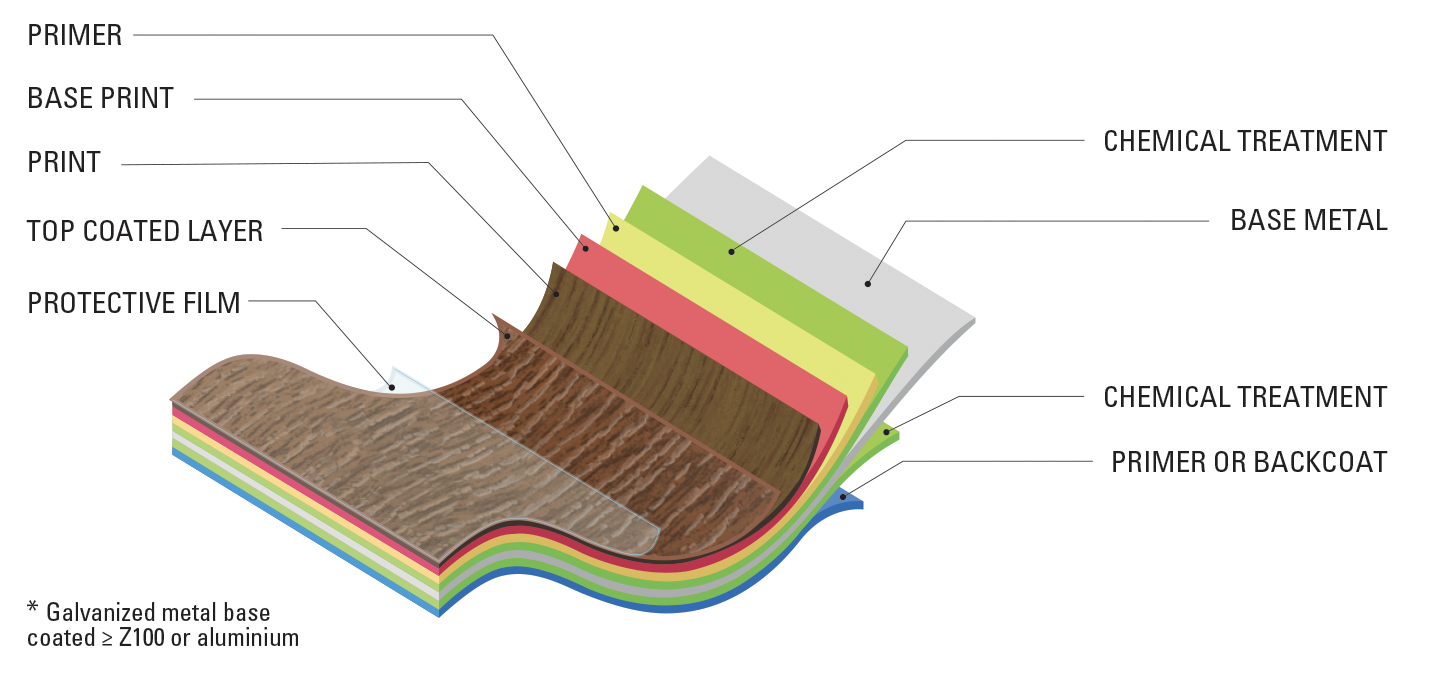

The research and development department has developed an organic coating with exceptional technical characteristics and extraordinary aesthetic qualities. The base metal, which constitutes the support of the product, undergoes a first chemical treatment after which several layers of polyester paint are applied in function of the final product. The product can be plain color or printed. The total thickness of the organic coating can go up to 25/50 microns. The printed coating simulates complex materials such as wood effect, wall, cotto tile or corten. Moreover, they can be reproduced with aluFLEX and steelFLEX.

Why VARHD+?

VARHD+, with the addiction of more colors, elevates the offer of precoated steels from an aesthetic point of view. It becomes even closer to the reality for a realism never seen before. Among the possible finishes is also available the embossing effect on Varcolor’s exclusive design: an elegant relief effect whose perception of the natural irregularities makes the coating much more similar to the manual work than the common mechanical embossing. With the embossed VARHD+ effect, the thickness raises the standard up to 50 microns.

Touch effect 111

Touch effect 110

Touch effect 104

Recyclable

Excellent processability

Excellent quality/price ratio

No joints in the coating

No paint detachments

Excellent corrosion resistance

High resolution

Excellent lightfastness

Touch effect

All coatings in the VARHD+ catalogue, both solid and printed finishes, are available with a 10 year guarantee when applied to steel (minimum Z225) or aluminium substrates

VARHD+
TECHNICAL FEATURES

METALLIC SUBSTRATES

HDG Steel
minimum zinc coating Z100
(UNI EN 10346)
Aluminium*

*thickness from 0.5 to 2 mm

SIZE

Metal thickness: mm from 0,3 to 2
Max. sheets size: mm 1.500 x 6.000
Max. strip width: mm 1.500
Min. strip width: mm 19
Coil ID: mm 500
Max. coil ED: mm 1.600
Max. coil weight: kg 10.000

For the upper and lower face coating refear to technical specifications.
